Product Information

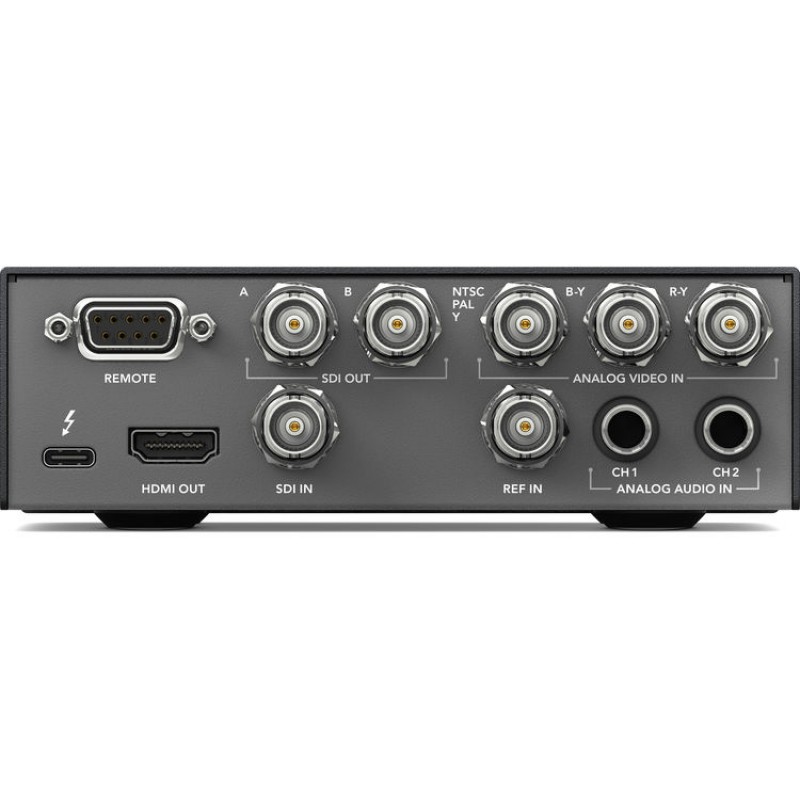

SD/HD/3G-SDI and Analog Inputs
HDMI and Dual SDI Outputs
Thunderbolt 3 Interface
Supports SD and HD Resolutions
4:2:2 and 4:4:4 Color Sampling Support
8/10/12-Bit Color Depth
RS-422 Deck Control
HD to SD Down-Conversion

SKU: BLA-ULTHD
Category:
Control

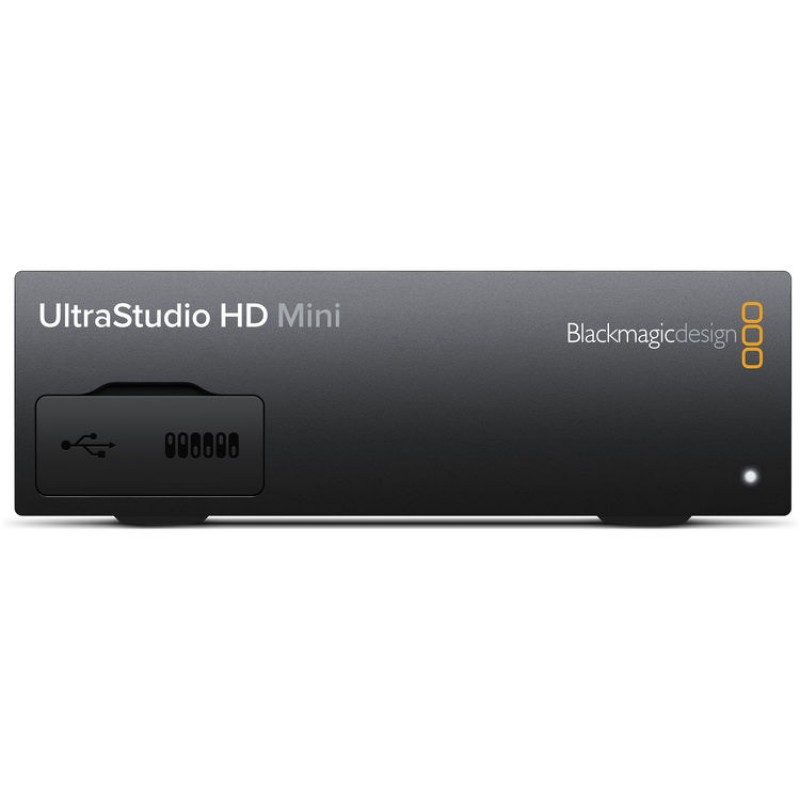

Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.
Processing
Color Space Conversion: Hardware based real time.

HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.

Real-Time Effects Support
Final Cut Pro X internal effects
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve
Thunderbolt 3 Connectivity
Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.
Software Application Support
Blackmagic Design: DaVinci Resolve, Fusion
Apple: Final Cut Pro X
Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
Avid: Media Composer, Pro Tools
Autodesk: Smoke
Steinberg: Cubase
