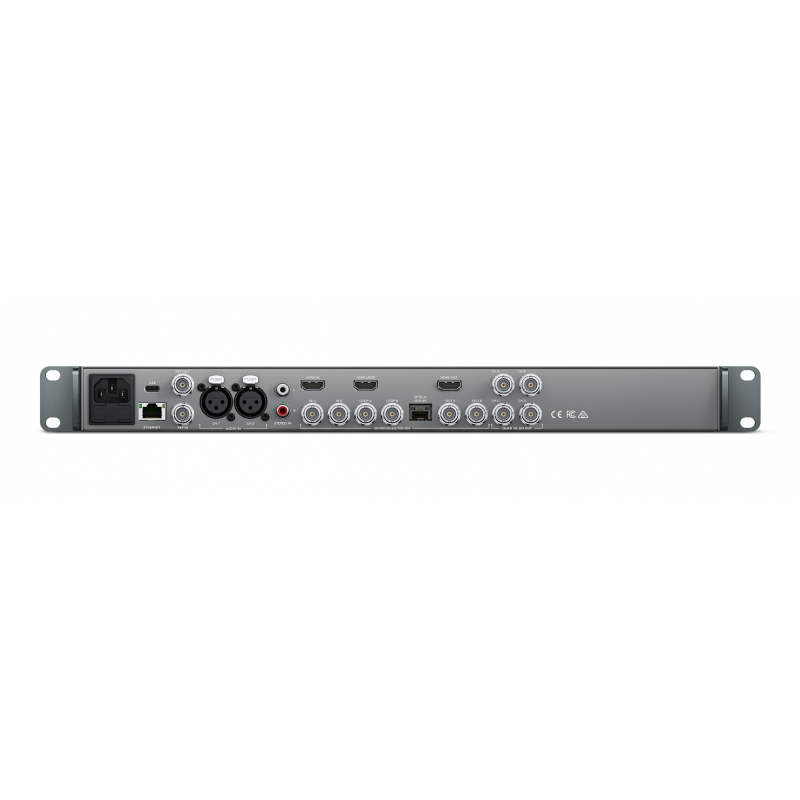

SDI Video Inputs
1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
SDI Video Input L oops
1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
SDI Video Outputs
1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
Quad SDI Video Outputs
4x BNC (Channels A, B, C, D) – 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
HDMI Video Inputs
1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
HDMI Video Loop Inputs
1x HDMI 2.0 type A connector. Active Input loop.
HDMI Video Outputs
1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
SDI Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Inputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Outputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection (optional)
1x SMPTE optical fiber SFP socket.
Optical Fiber Video Inputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Video Outputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Inputs
2x XLR – 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA – stereo unbalanced analog audio on RCA connectors for consumer equipment.
AES/EBU Digital Audio Inputs
2x XLR – 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
Dolby® Support Built In
Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.
Timecode Inputs
Support for VITC/ATC. No support for LTC.
Timecode Outputs
Support for VITC/ATC. No support for LTC.
Multi Rate Support
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input
1x BNC – Black Burst in SD or Tri-level sync in HD.
Reference Output
1x BNC – Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
Processor Interface

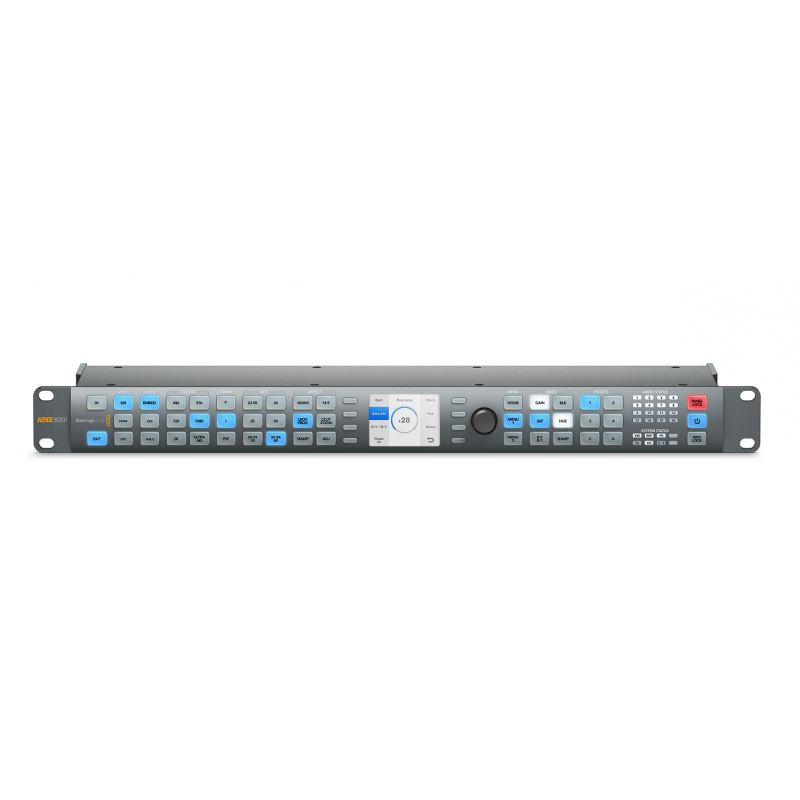

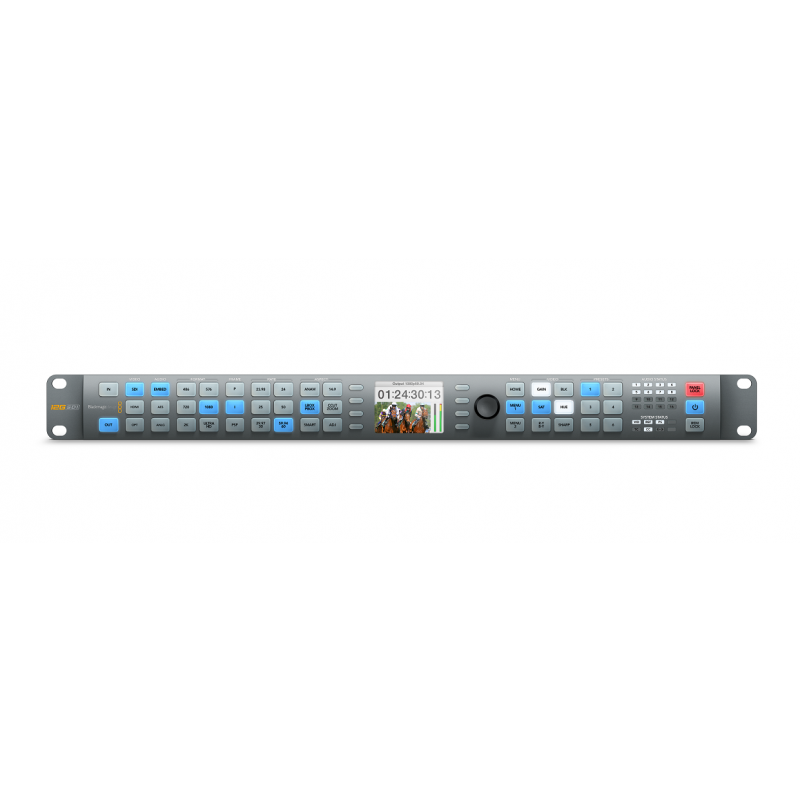

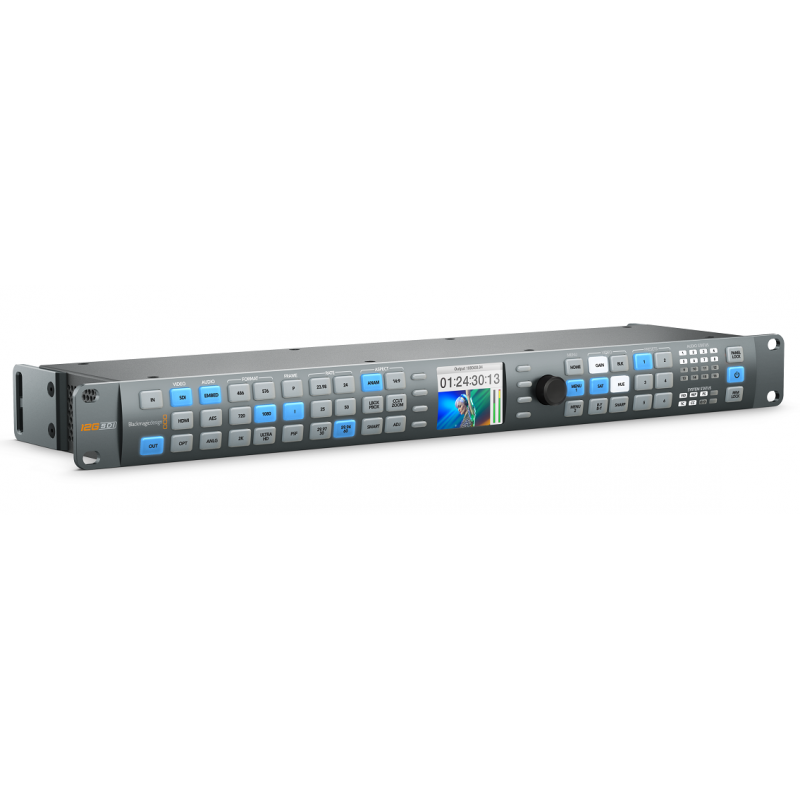

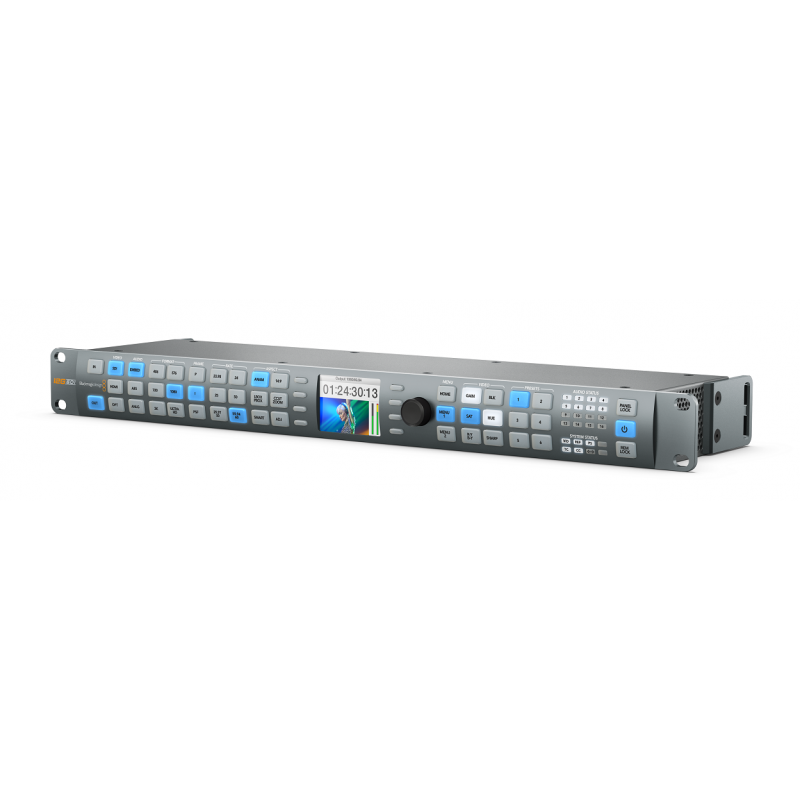

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
