Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards
4K DCI 24p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601.
Audio Meters
Each view, VU standard.
Source Routing
Yes
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
10-bit 4:2:2 and 4:4:4.
SDI Color Space
YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, and 6G‑SDI on each input so that each input can be running a different television standard.
SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
Control

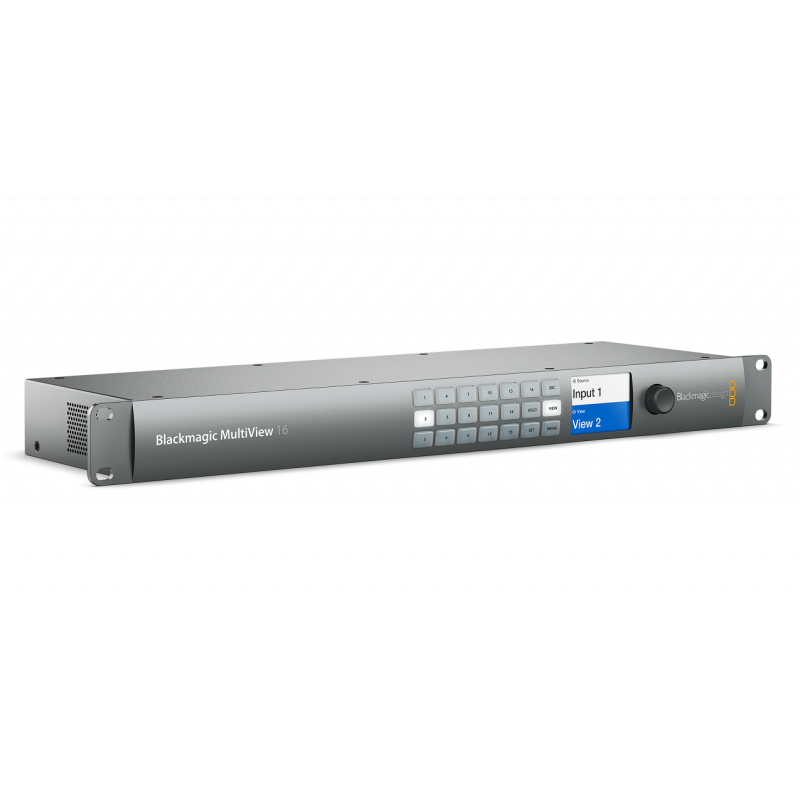

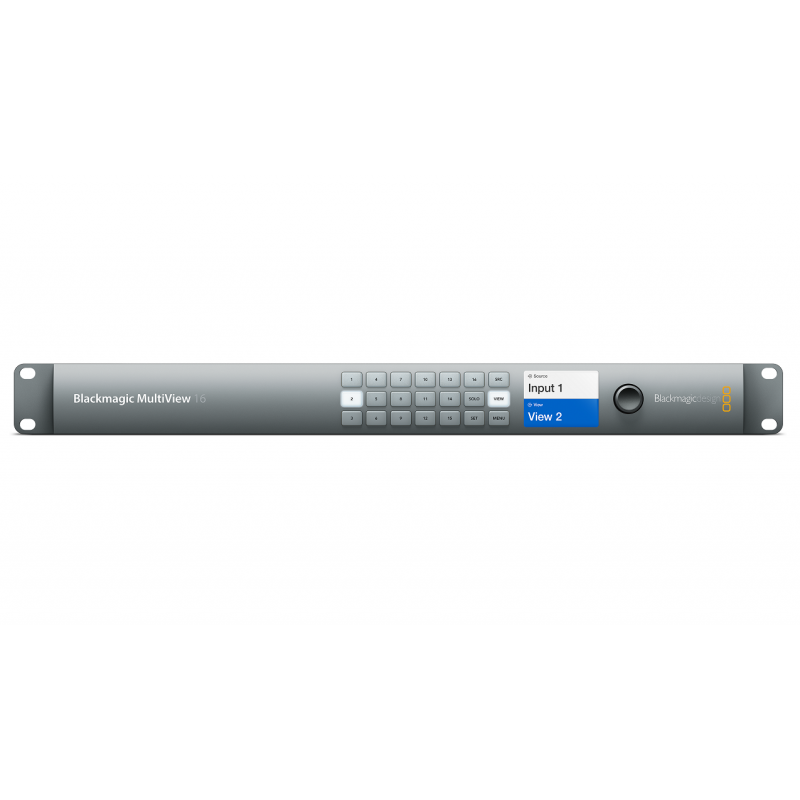

Built in Control Panel
16 buttons for local control of source routing with 5 buttons and scroll wheel for menu control. 2.2 inch color display.
External Control Panel
Includes Blackmagic Videohub software control panel for Mac OS and Windows for routing sources to views. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
RS-422 Control
RJ9 for external control.
Display
Built in 1.5 inch LCD for menu settings.
Software
Software Control
MultiView software included free for Windows™ and Mac™
Internal Software Upgrade
Via included updater application.
Power Requirements
Power Supply
IEC power cable required.,90 – 240V AC input.
Power Fail Protection
MultiView 16 settings preserved and restored instantly at power on.
Power Consumption
45 Watts
